Elitech Tlog 100EH Reusable Temperature Humidity Data Logger -40°F to 185°F

Elitech Tlog 100 EH data loggers are used to monitoring and record the temperature (humidity) for foods, pharmaceuticals, and other products during their storage and transport, and in each stage of cold chain logistics, such as refrigerated contain-ers/ trucks, cooler bags, cooling cabinets, medical cabinets, freezers, and laboratories.

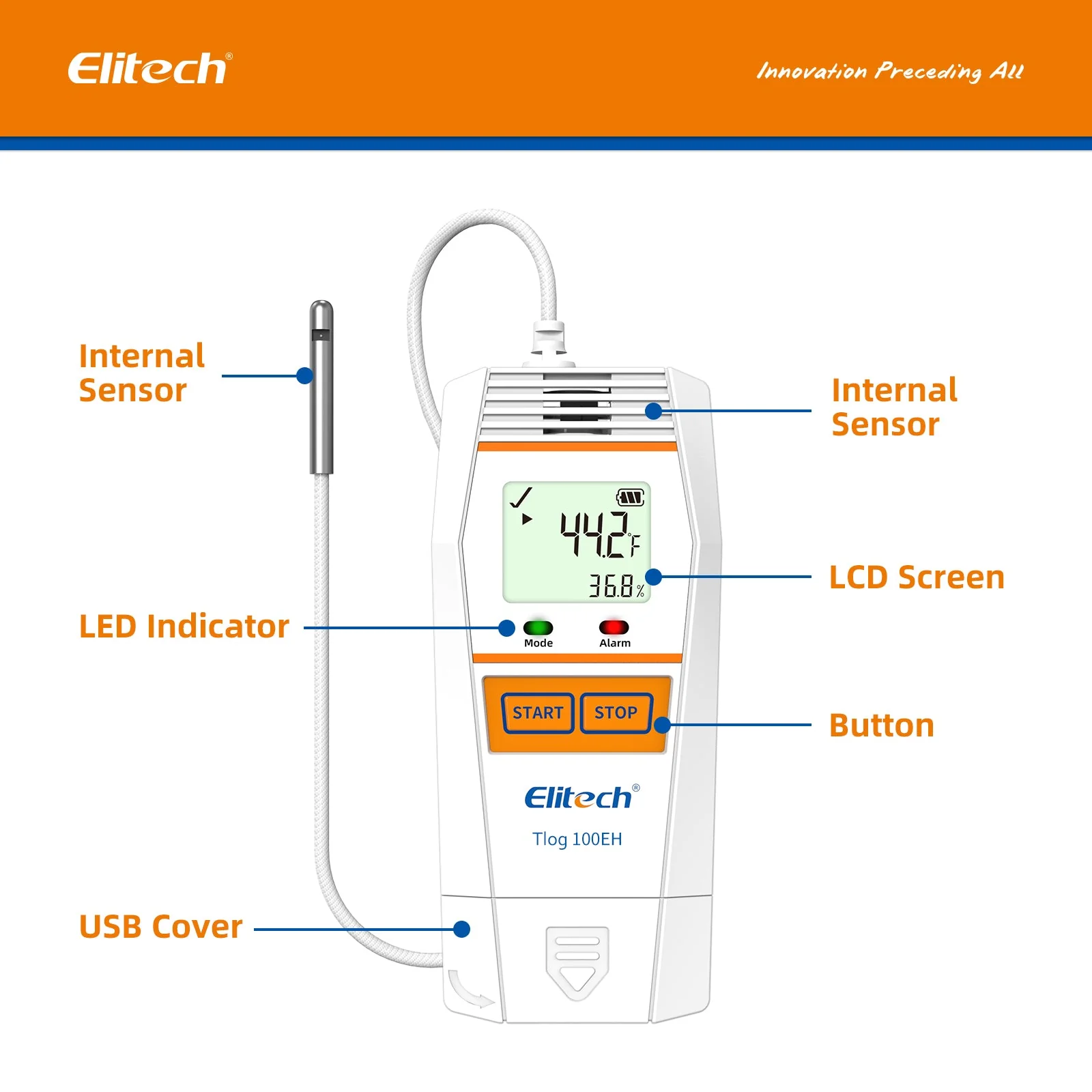

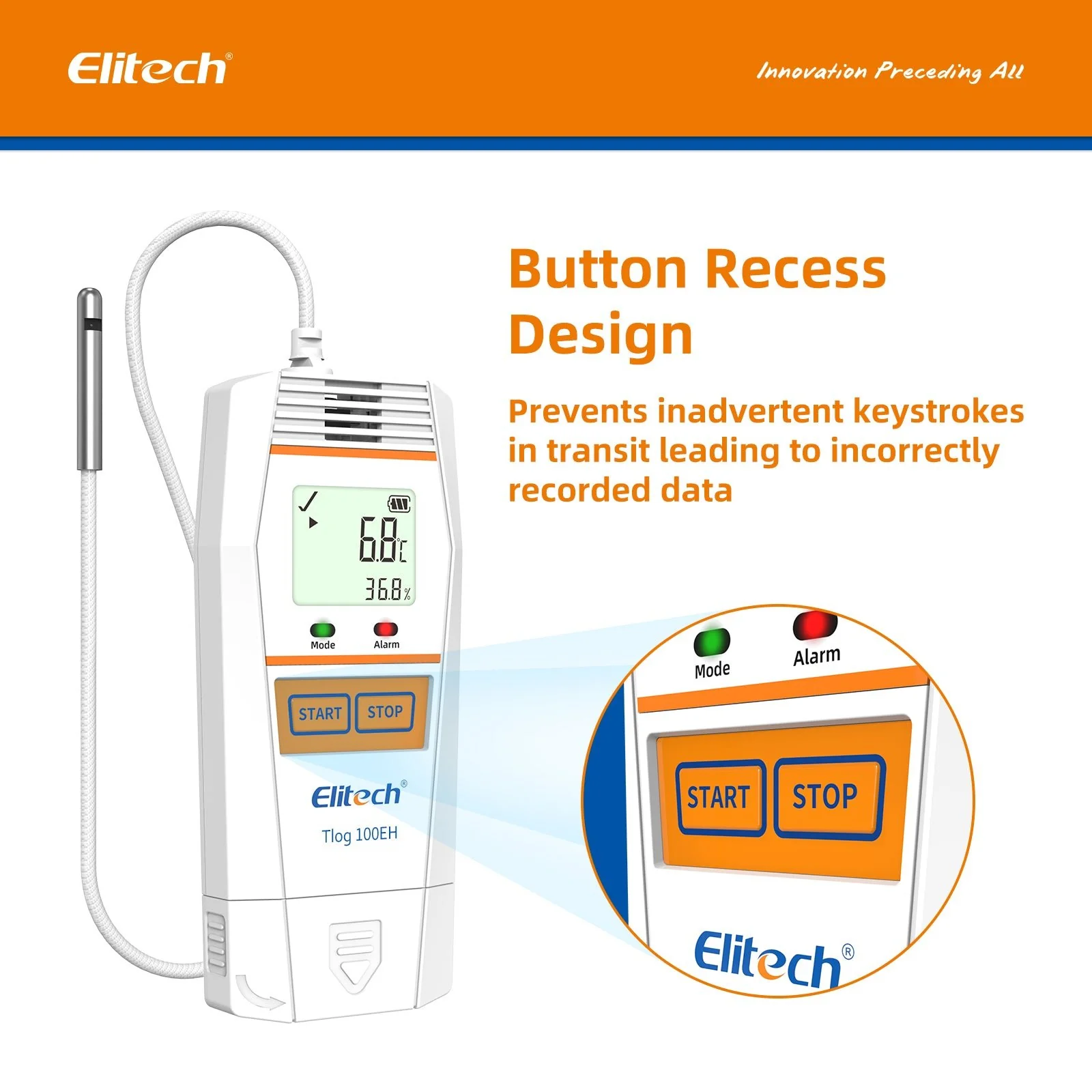

This temperature recorder features a USB port, LCD screen and two buttons designed to prevent accidental touches. You can view device status and parameters by button press, or customize various parameters, such as start/stop modes, multiple thresholds, storage modes, etc. You can also view automatically generated PDF report without using the ElitechLog software.



Specifications

Model	Tlog 100EH
Measurement	Temperature & humidity
Temperature measurement range	-40℃ ~ 85℃ (-40℉~185℉)
Temperature accuracy	±0.3℃/±0.6℉(-20℃~40℃); ±0.5℃(other)
Humidity measurement range	0%RH - 100%RH
Humidity accuracy	±3%RH(25℃: 20%RH-80%RH); ±5%RH(other)
Sensor type	External temperature-humidity probe
Resolution	Temperature: 0.1; Humidity: 0.1%RH
Memory	32,000 data points
Logging interval	10s - 24h
Battery	CR2450 3.0V Button Cell
Protection grade	IP65

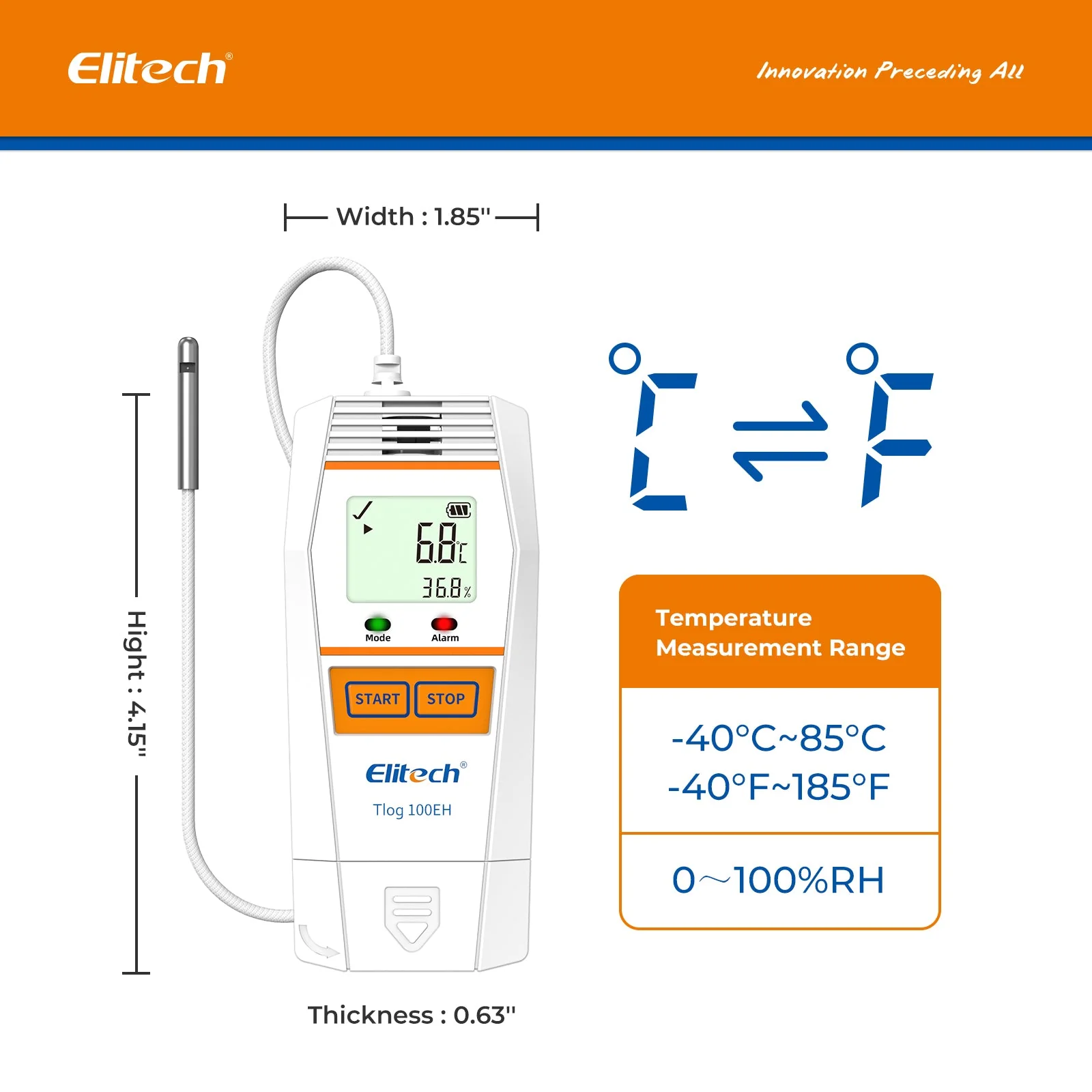

Dimensions	115.5*47*16.2 mm
Probe length	42in (107cm)
Weight	70g
Alarm thresholds	Temperature: up to 3 high limits and 2 low limits
Alarm type	Single/Cumulative

Package includes

• 1 x Data Logger
• 1 x User Manual(Download)
• 1 x Calibration Certificate

Note:

• A calibration certificate issued by the Elitech quality department center is included with every data logger.
• For a certificate issued by a third party, please make sure to select "ISO 17025 Certified" in the variation when purchasing your data logger. This calibration certificate is issued by a laboratory that conforms to International Organization for Standardization (ISO) 17025 international standards for calibration testing and traceability.
• For most of the product from Elitech you purchase that includes an ISO verification certificate, we need to send the product to a third-party ISO agency for verification, which will prolong the overall logistics process by 1-3 weeks. If you have stringent needs regarding the delivery time, please be careful to purchase products that include ISO verification certificates. We'd like to remind the customers who urgently need our products that all our loggers also come with a calibration certificate from the factory.

Please contact us at [email protected] if you need the date of calibration and expiration printed on the calibration certificate.
