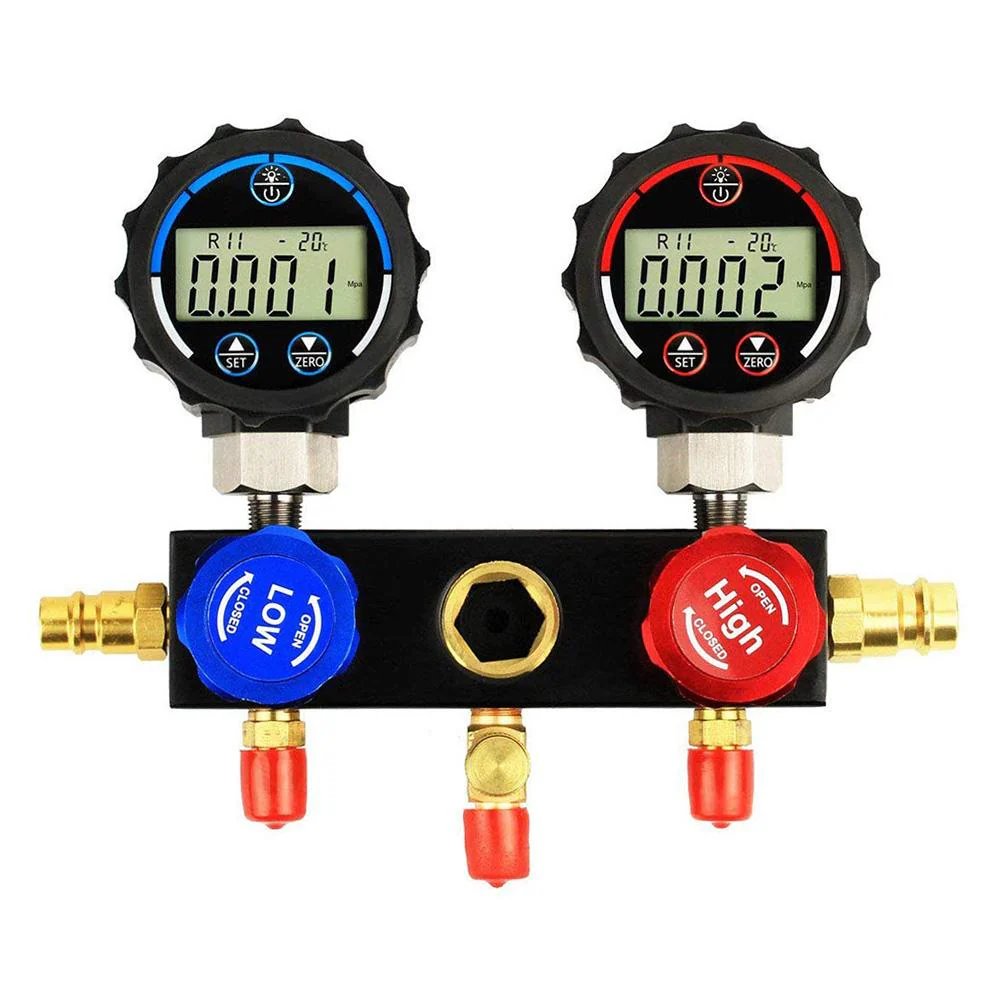

Elitech DMG-1 Digital AC Manifold Gauge Set with R410a Adapter

Digital manifold gauge kit is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It displays pressure in real-time.

Key Features:

• Professional Design: 3-Ways Air conditioning diagnostic manifold gauge set for R134A R12 R22 and R410A refrigerants. Designed for AC charging, diagnostic check and recovery work.
• Easy to use: Double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function, and built-in refrigerant database.
• High Accuracy: High-quality dual-table valve with imported pressure sensor, excellent workmanship, stable performance, large screen display data clearly
• Long battery life: Powered by 3V CR2450 button battery, up to work about 6 months
• Wide Application: The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing, and maintenance of refrigeration equipment such as air conditioners, fridge and cold storage.
• Service 1-year warranty. 30 days free & easy return

Parameters:

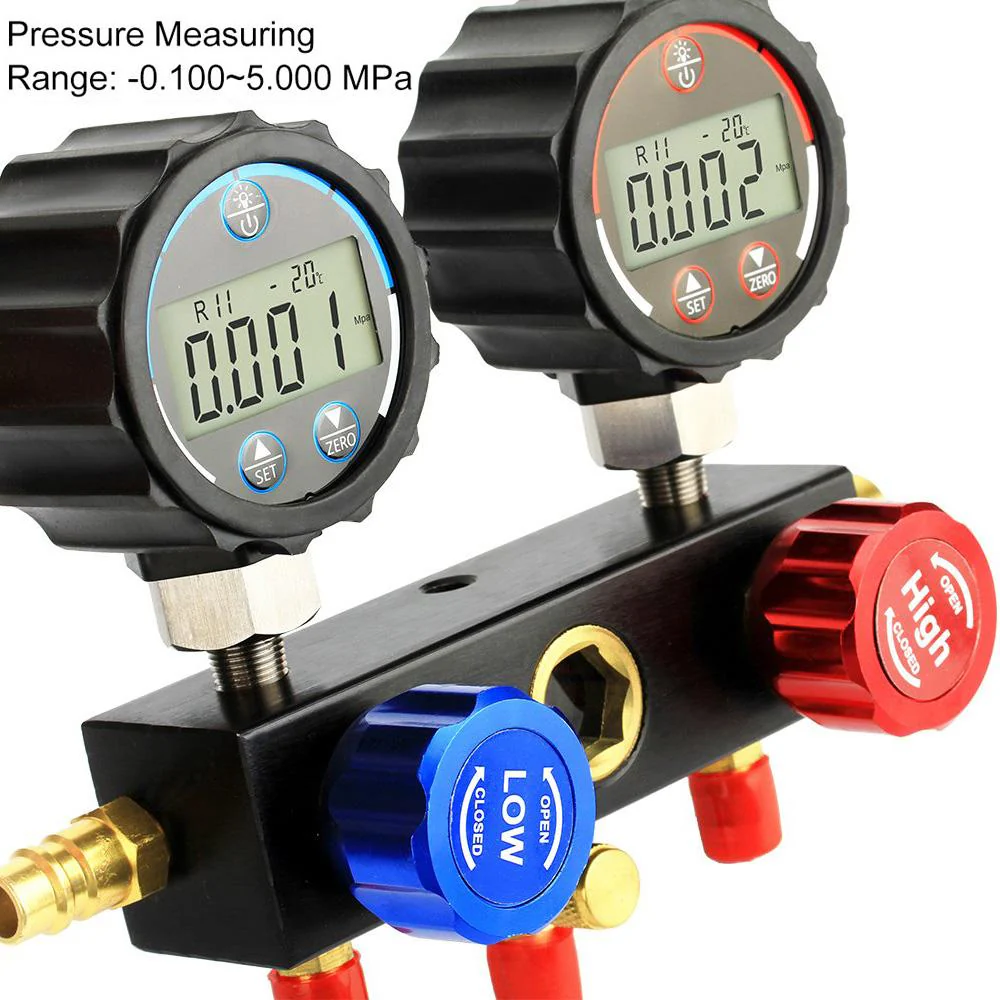

• Pressure Measuring Range: -0.100~5.000 MPa
• Operating Temperature and Humidity: -10~60℃; 35%~85%RH
• Resolution pressure: 0.001MPa; temperature: ±1℃
• Accuracy pressure: ±0.5%FS (22℃~28℃); temperature: ±1℃
• Battery Life: Six months
• Power supply: 3V CR2450 button battery
• Sampling Period: 1.2s
• Battery Indicator displays "LOB" at low battery

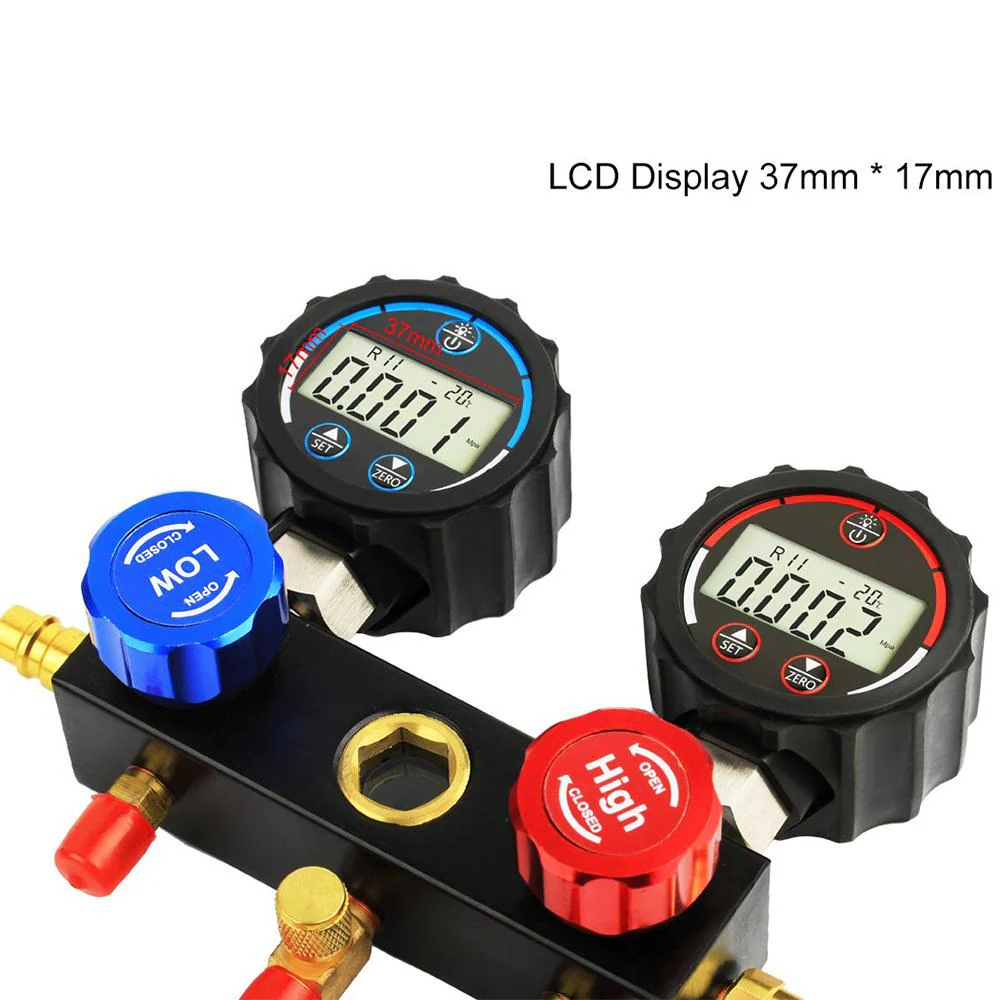

• Display 37mm x 17mm LCD/gren backlight
• Measurement Units: MPa, kPa, bar, psi, kgf/cm2, mmHg
• Out-of-Range Alarm pressure: FULL

Package:

• Double core valve * 2;

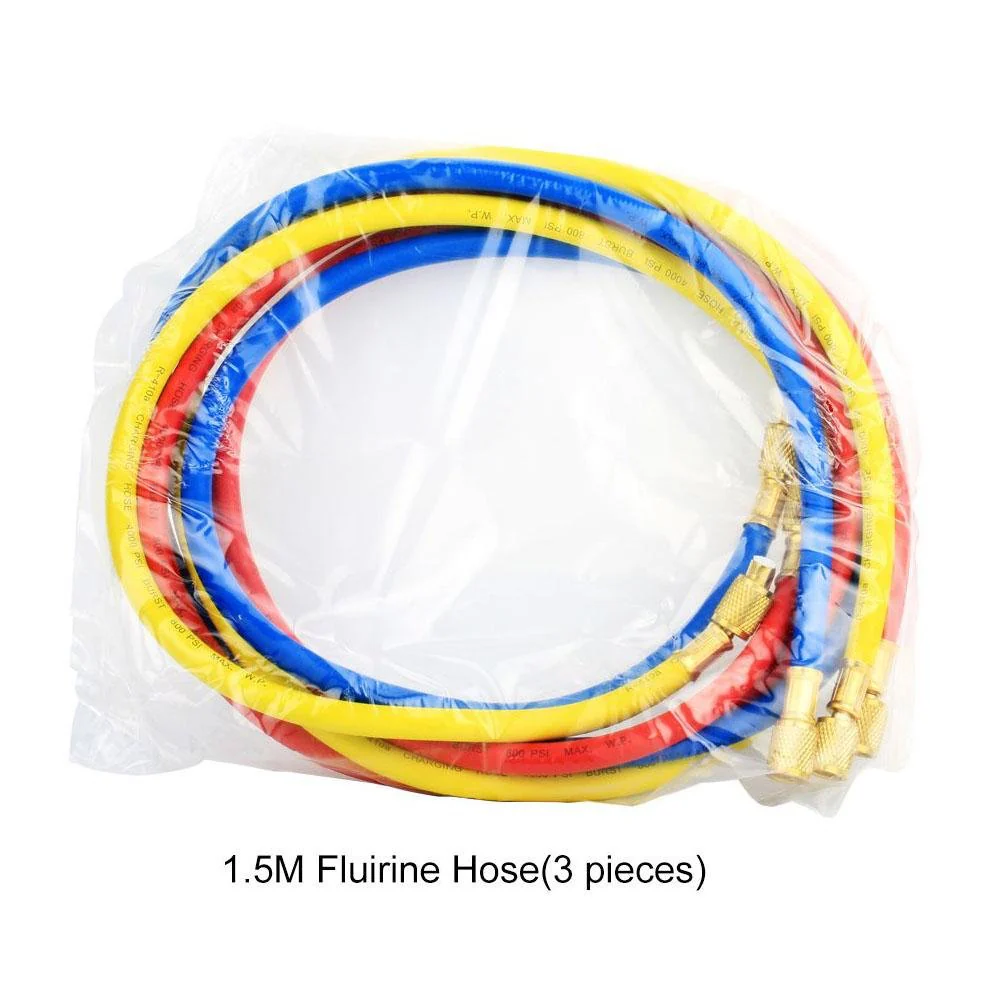

• 1.5m fluorine hose * 3 (Min pressure: 800psi; max pressure: 4000psi)

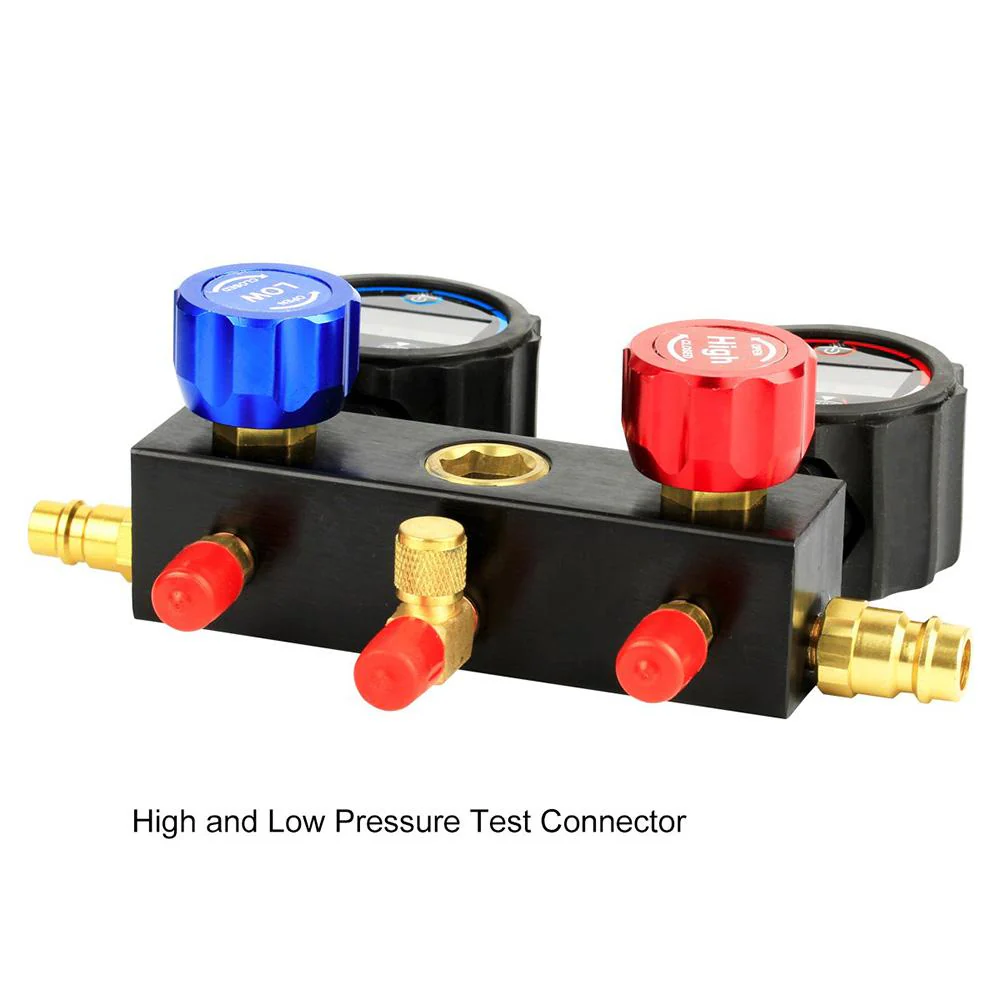

• High and low-pressure test connector * 2 (Low side: blue; high side: red)
• Corkscrew * 1
• Dual-purpose valve wrench * 1

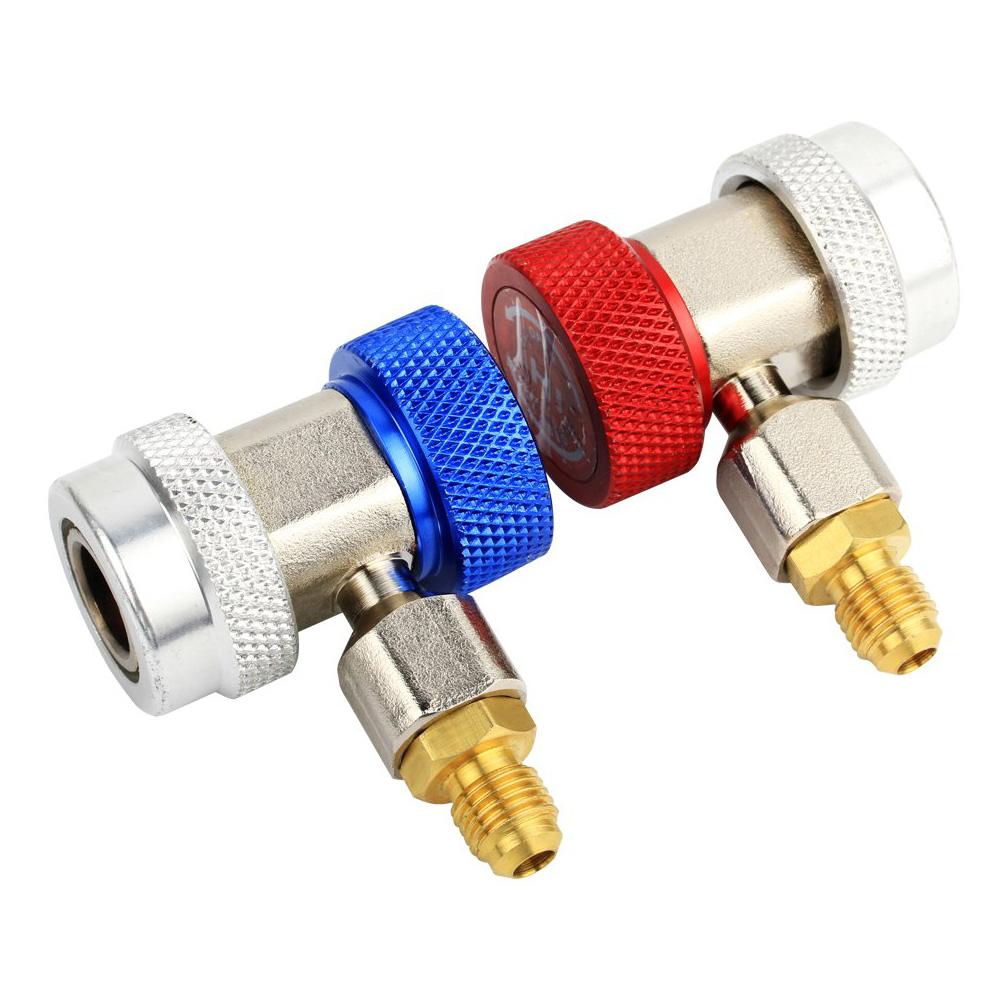

• R410A adapter * 1
• Blow molding package
• Manual * 1

Compatible Refrigerants:

• R11, R113, R114, R115, R116, R12, R123,
• R1234yf, R1234ze, R124, R125, R13, R134a,
• R14, R141B, R142B, R413A, R152A, R161,
• R170, R21, R218, R22, R23, R290, R32, R401A,
• R401B, R401C, R402A, R402B, R403A, R403B,
• R404A, R406A, R407A, R407B, R407C, R407E,
• R407F, R408A, R409A, R409B, R41, R410A, R410B,
• R412A, R413A, R414A, R414B, R415B, R416A, R417A,
• R419A, R420A, R421A, R421B, R422A, R422B, R422C,
• R422D, R423A, R427A, R437A, R441A, R442A, R443A,
• R444A, R448A, R449A, R449B, R450A, R452A, R455A,
• R50, R500, R502, R503, R504, R507A, R508A, R508B,
• R509A, R513A, R600, R600a, R601, R601a, R740, R744



User Manual: Download
