Elitech HLD-100 portable halogen leak detector, as the exquisite unit of our company with its feature of higher performance and competitive price, has powerful function and high sensitivity and is stable and easy to operate.

Feature

Traditional coronal sensor with upgraded low-energy CPU, more stable and fast triggers on R11, R22, R134A, R404a, R410A and all halogenated refrigerants including HFCs, CFCs, HCFCs, and blends.
Response in 3 seconds; Warm up in 6 seconds. One extra spare sensing tip is included.
7 Adjustable Sensitivity with max. the sensitivity of 0.11oz/yr.
Audible and visual gas leakage indicators and dual battery indicator.
Meets EN14624 and SAE-1627 Standards.
Service 1-year warranty. 30 days free & easy return

Advanced Corona Detector

Long battery life, more stable detection

It will respond to all halogenated. This includes, but is not limited to:

CFCs e.g.R12, R11, R500, R503 etc.
HCFCs e.g. R22,R123, R124,R502 etc.
HFCs e.g. R134a, R404s, R125 etc.
Blends such as AZ-50. HP62. MP39 etc.

Short Preheating Time

Once the switch rotated, the detector is ready to be used.
Preheating time: 6s
Response time: 3s

7 Adjustable Sensitivity

1-7 Grade selectable sensitivity
Maximum sensitivity is 0.11oz/yr
Lower sensitivity grade when unstable detecting results
Higher sensitivity grade when leakage is smaller.

Audible and Visual Alerts

LED light flash alarm
Buzzer alarm
Dual-battery indicators
More refrigerants, more rapidly beep, faster indicator flashes

Industrial Standards

Meets EN14624 standard
Conforms to SAE-1627

Application

Air Conditioning Maintenance
Vehicle Maintenance and Repair
Refrigeration Equipment Testing
Refrigerator Repair

Flexible Probe

Around 13.98-inch flexible probe
Allows detection in difficult and hard-to-reach areas.

Specification

Powered by 2C Batteries
Notice: They are not included in the package
Max sensitivity: to halogenated refrigerants, 0.11oz/yr
Battery life: 30 hours under normal condition
Working temperature: 0℃∽52℃
Working mode: Continuous and no limit
Reaction time: instant
Resetting time: 2 seconds
Warm-up time: about 6 seconds
Size: 9*2.6*2.6 inches
Power supply: 3V DV, 2 x C batteries
Probe length: 13.98 inches
Package includes: 1 x Detector, 1 x Sensing Tip, 1 x User Manual

		Sensor Type	Battery included	Battery Required	Sensor Life	Probe Length	Rechargeable	Sensing Tip

WJL-6000	Corona	NO	4 AAA	≥ 24 hours	7.87 inch	NO	1
CLD-100	Corona	NO	4 AAA	≥ 24 hours	7.87 inch	NO	1
HLD-100+	Corona	NO	2 C	≥ 24 hours	13.98 inch	NO	2
HLD-200	Corona	NO	2 AA	≥ 24 hours	12.01 inch	NO	2
LD-200	Heated Diode	YES	Li-1800mA/h	≥ 500 hours	14.37 inch	YES	1
ILD-200	Infrared	YES	Li-3000mA/h	≥ 10 years	14.37 inch	YES	1

23bf hvac clearance

Elitech HLD-100+ Portable Halogen HVAC Leak Detector with 1 Extra Sensor Tip

Elitech WJL-6000S Refrigerant Leak Detector HVAC Air Condition High Accuracy

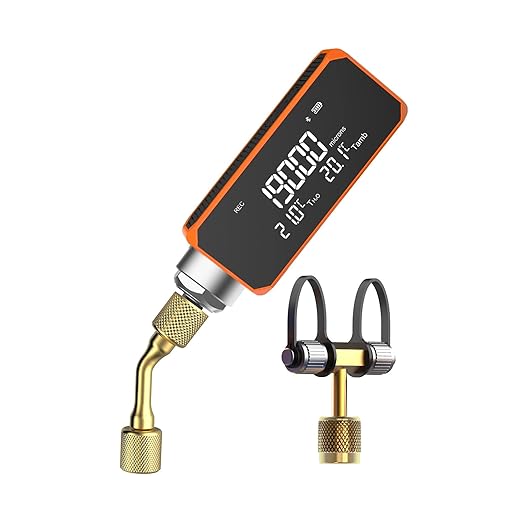

Elitech Vacuum Microns Digital Microns Gauge HVAC Refrigerant Vacuum Tester 1/4", VGW-Mini
